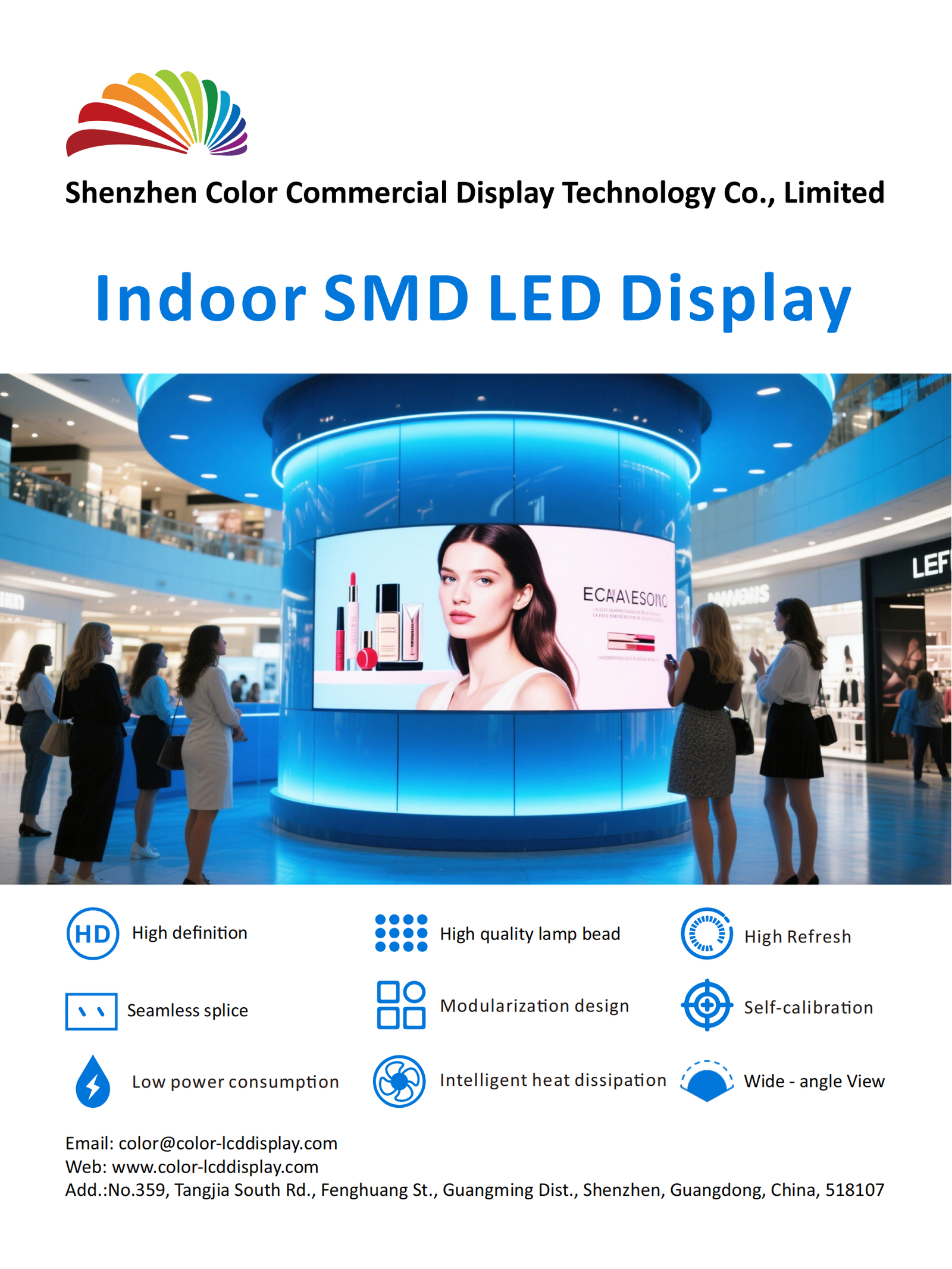

Indoor SMD LED Display

Indoor SMD LED Display
Experience stunning visuals with our Indoor SMD LED Display. Designed for indoor use, it offers vibrant colors, high resolution, and easy installation. Perfect for any space that demands excellence.

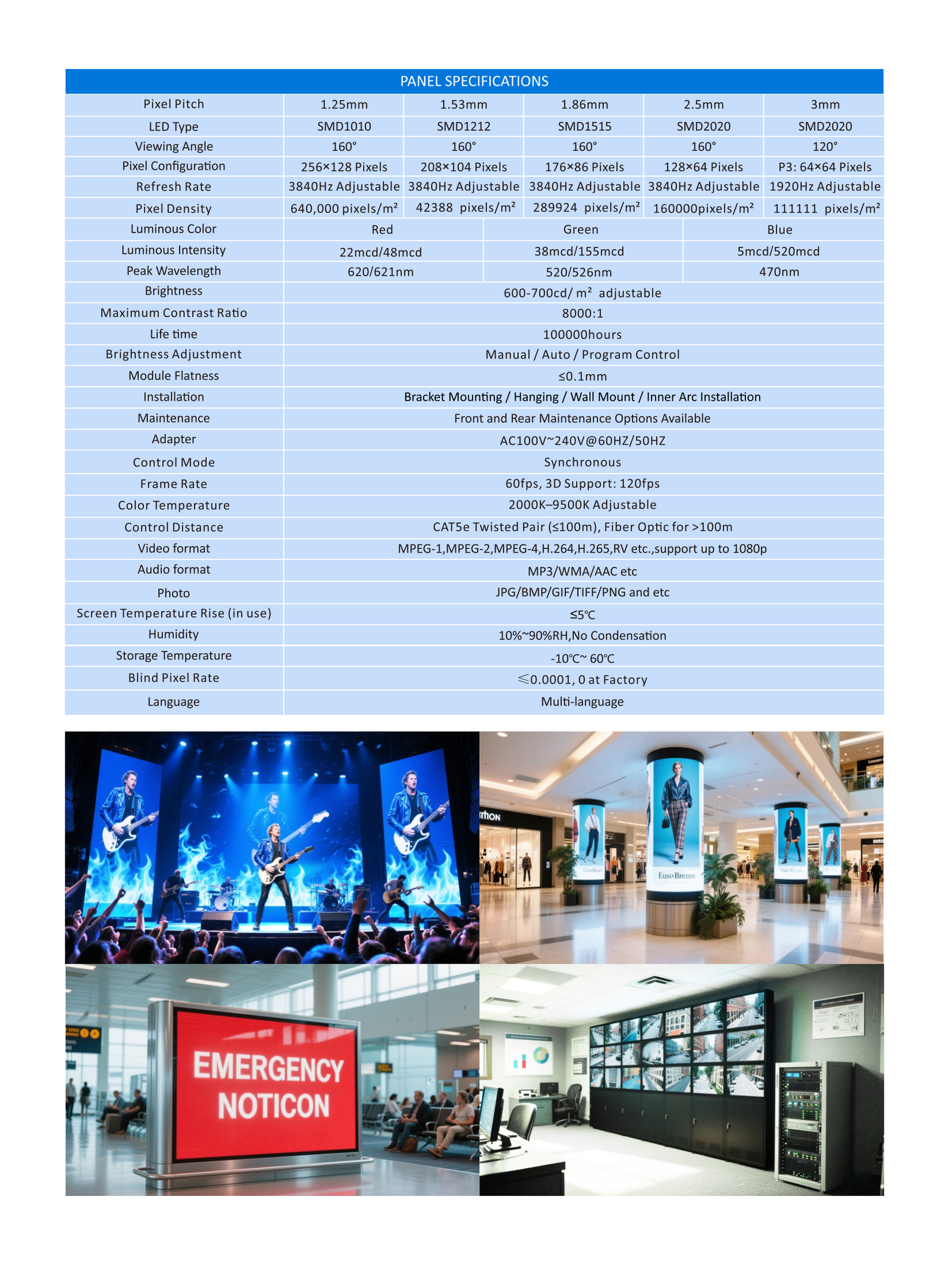

pixel  pitch 1.25mm 1.53mm 1.86mm 2.5mm 3mm
LED Type SM D1010 SM D1212 SM D1515 SM D2020 SM D2020
viewing Angle 160′ 160′ 160′ 160′ 120。

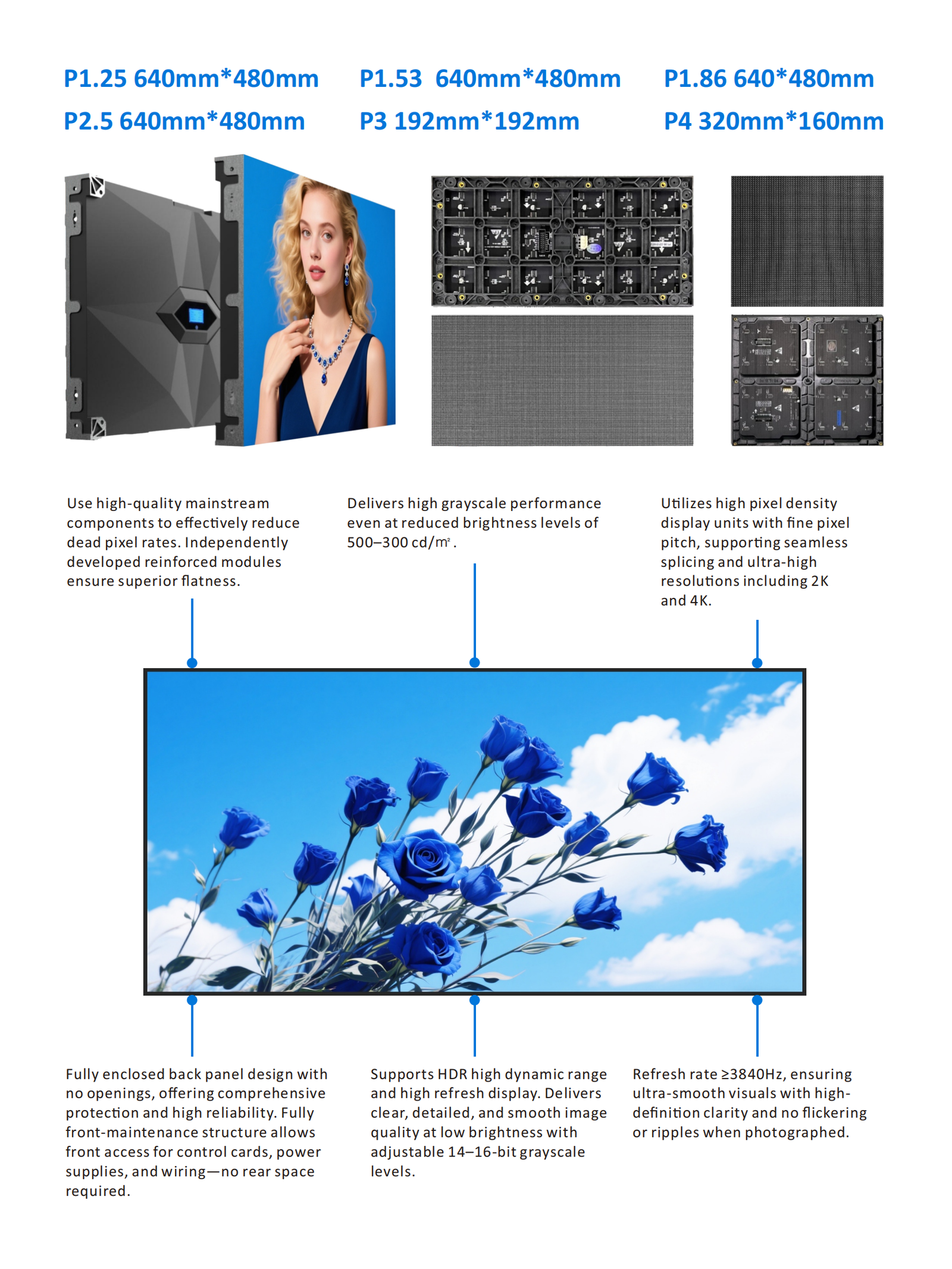

Size P1.25 640mm*480mm，P1.53  640mm*480mm，P1.86 640*480mm，P2.5 640mm*480mm，P3 192mm*192mm，P4 320mm*160mm
pixel configuration 256×128  pixels 208×104 pixels 176×86  pixels 128×64 pixels P3: 64×64 pixels
Refresh  Rate 3840HZAdjustable 3840HZ Adjustable 3840HZ Adjustable 3840HZ Adjustable 1920HZ Adjustable
pixel Density 640,000 pixels/m2 42388  pixels/m2 289924  pixels/m2 160000pixels/m2 111111 pixel/m2
Luminous color Red Green Blue
Luminous Intensity 22mcd/48mcd 38mcd/155mcd 5mcd/520mcd
peakwavelength 620/621nm 520/526nm 470nm
Brightness 600-700cd/m2  adjustable
Maximum contrast Ratio 8000:1
Life time 100000hours
Brightness Adjustment Manual/Auto/ program con tro
s0.1mm
Installation Bracket Mounting/ Hanging/wal lMount/InnerArc Installation
Maintenance Front and Rear Maintenance options Available
Adapter AC100V~240V@60HZ/50HZ
control  Mode synchronous
Frame  Rate 60fps, 3D support: 120fps
colorTemperature 2000k-9500K Adjustable
control Distance CAT5eTwisted pair(s100m), Fiber optic for>100m
video format MPEG-1,MPEG-2,MPEG-4,H.264,H.265,Rv etc,support up to 1080P
Audio format MP3/WMA/AAc etc
photo JPG/BMP/GlF/TIFF/PNG and etc
screen Temperature Rise (in use) ≤5℃
Humidity 10%”90%RH,No condensation
storage Temperature -10℃ 60℃
Blind  pixel  Rate ≤0.0001,0 at Factory
