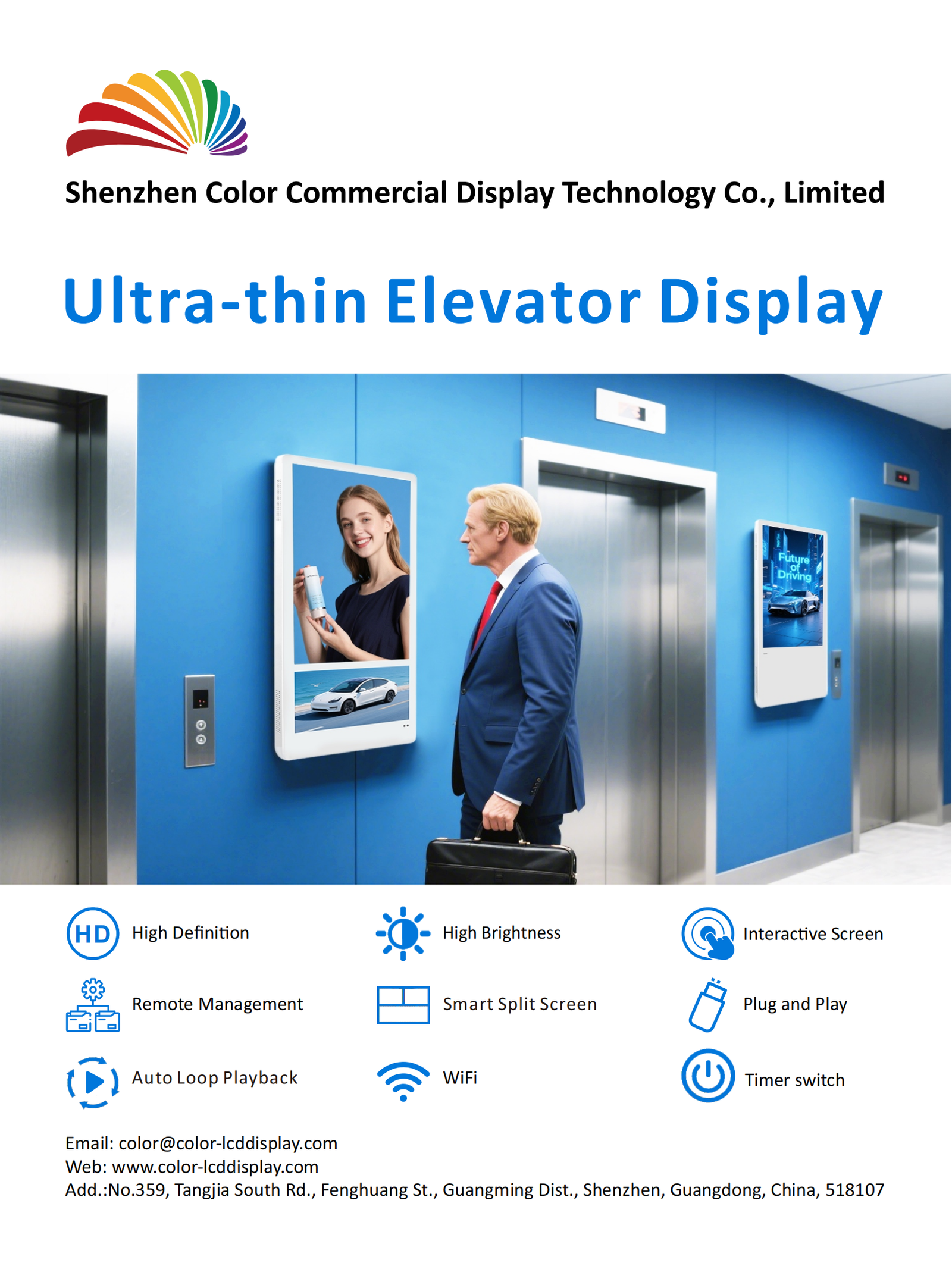

Ultra-thin Elevator LED Display

This ultra-thin, high-resolution display is designed to seamlessly integrate into modern elevator cabins, adding a touch of elegance and functionality. It provides real-time information, such as floor numbers and elevator status, while its minimalist design enhances the overall aesthetic of your elevator. With its slim profile and high-quality visuals, this display is an ideal solution for elevating the passenger experience in any building.

PANEL SPECIFICATIONS
Screen size	10.1″ -TFT, 11.6″ -TFT, 18.5″ -TFT, 21.5″ -TFT
Panel Brand	A grade LG/BOE/Innolux
Display area(mm)	261(H)137(V), 257.5(H)476(V), 261(H)410(V), 268.9(H)477.4(V)
Resolution	1280800/1366768/1920*1080
Viewing angle	89/89(H),89/89(V)
Contrast Ratio	1200：1
Brightness	≥350 nits(Typ.)
Response time	≤6ms
Touch mode	Non/PCAP/IR Touch
Color	16.7 M color
Aspect Ratio	16:9
Life span	50000 hours
Media players	Android System/Windows system/Plug&Play System/Monitor
Video Decoder	MP4,MPEG2,MPEG4,H.264,RM,RMVB ,MPG,MOV,AVI,MKV,TS,M2TS
Audio Decoder	MP3,AAC,WVA,WMA
Image Decoder	JPEG,PNG,GIF,BMP
OSD Language	CN/EN Multilingual
Speaker	2X10W
Installation	Wall mount
Operating Temperature	0–50℃
Humidity	10~85%
Storage Temperature	-10℃~ 60℃
Power Input	AC100-240V~(+/- 10 %) 50/60Hz
Power consumption	10W, 11W, 18W, 20W
Material	Aluminum alloy + Metal Plate+ 3MM Tempered Glass
Color	Front/Back-Black Silver Edge(Bespoke option)
Accessory	Power cord,antenna
